Sorting a Cubit Estimating Job - Grouped View

Feature Availability: Version 8 and above (For Rate Analysis and Simple job mode only)

In an earlier version of Cubit Estimating, sorting of the estimate was done outside the job. Grouped View feature to be able to sort/analyse the estimate inside the job. With this feature when the job is coded and analysed, any changes done to the Estimate is automatically reflected in the Grouped View without having to re-analyse the job.

Sorting also has more flexibility in choosing the Description with which you want to analyse the data.

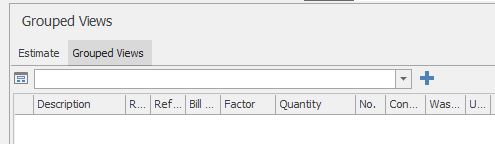

Fig1. Grouped Views

Assigning Group Code to the Job:

1. From the Configuration tab, click on Edit Columns.

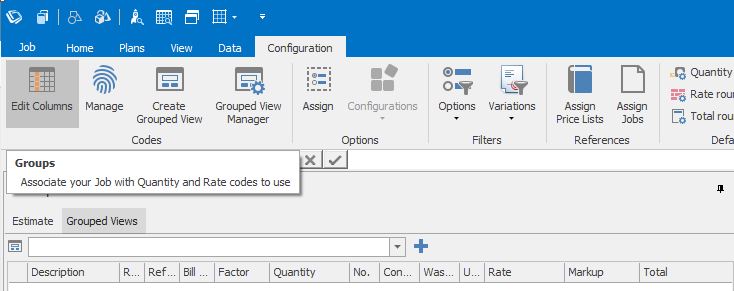

Fig 2. Group mapping

2. In the following Group Mapping window, tick the Rate Code group which needs to be mapped and then press Ok.

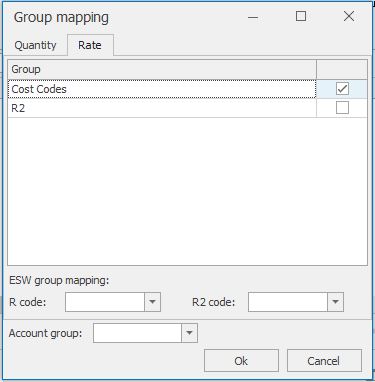

Fig 3. Group mapping

3. Double click on the codes column to set codes on all the items on the job as needed.

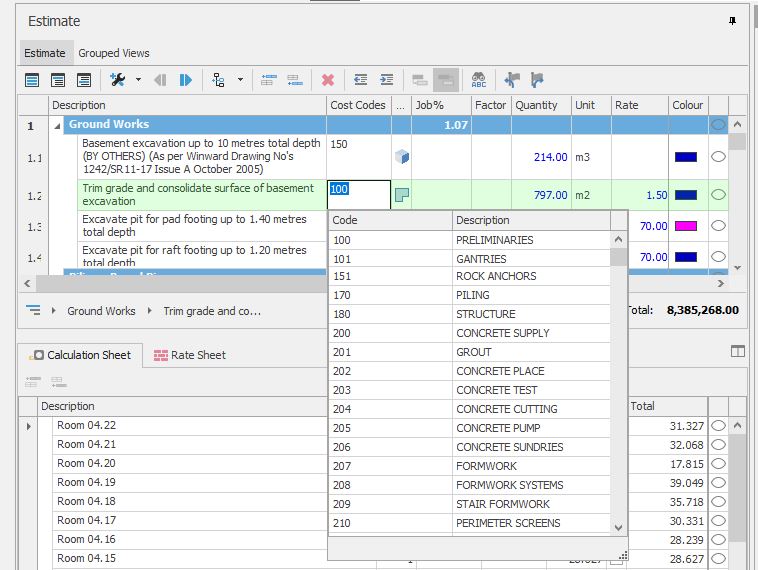

Fig 4. Code the job

Sorting/Analysing Job:

1. When coding is complete run the sorting/analysis by one of the following ways

a. Click on the Create Grouped View button on the Configuration Ribbon

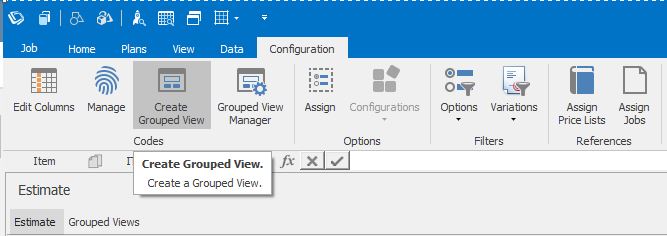

Fig 5. Create Grouped View 1

b. Click the + symbol on the Grouped Views Window.

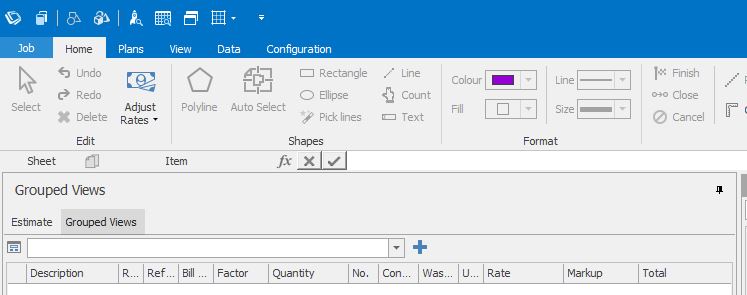

Fig 6. Create Grouped View 2

2. Group By field will be auto-selected. Change a Group Name for this view if needed and select all other options appropriately. Click on Group button to start the analysis.

Fig 7. Rate analysis

3. Switch to the Grouped View tab to view the analysed data.

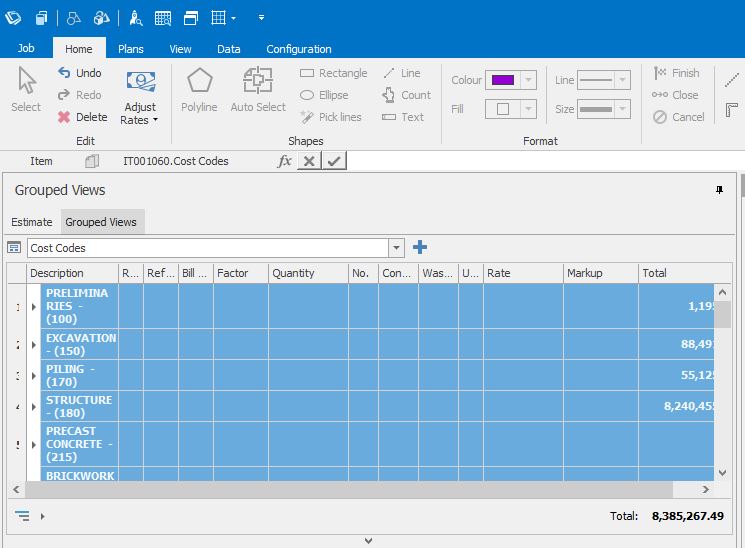

Fig 8. Grouped View result

Multiple Grouped views:

Multiple grouped views can be generated for the same job with the same or a different group codes

1. To navigate between the Grouped Views, click on the drop-down button like below

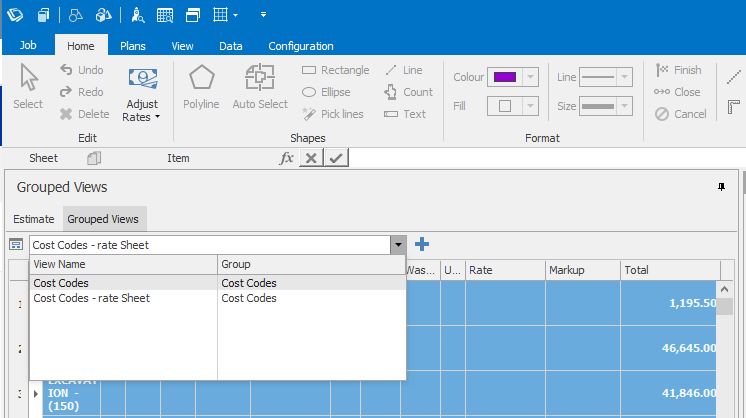

Fig 9. Multiple grouped view for the same job
