Importing a Job with missing plans

Cubit will not allow you to import a Job if it was exported without Plans.

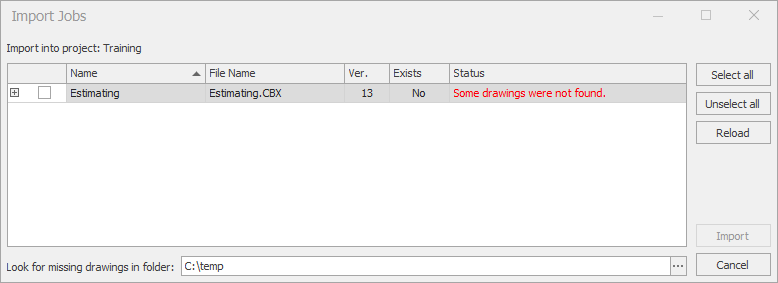

Fig 1: Missing plans

To overcome this, all missing plans must be accessible on your device.

Expand the Job line to see the missing drawings and in the Look for missing drawings in folder, navigate in your local drive where these plans are stored.

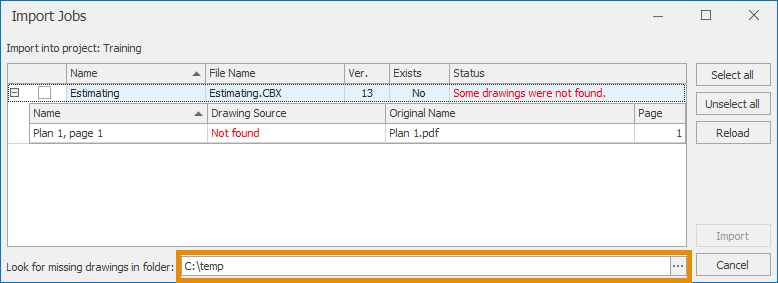

Fig 2: Locate Missing plans

Once the missing plans are found, you will then be able to import the Job.

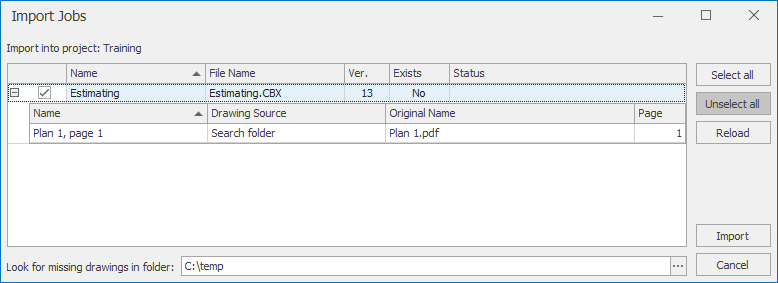

Fig 3: Import Job
