Managing Cubit Estimating Database Backups and Schedules


Cubit Estimating Management Console

When on a network version there is usually a desktop shortcut to access Cubit Estimating Management console. The shortcut can also be accessed from C:\Program Files\Buildsoft\Cubit folder (Right Click on Cubit Estimating Icon and Open File Location).

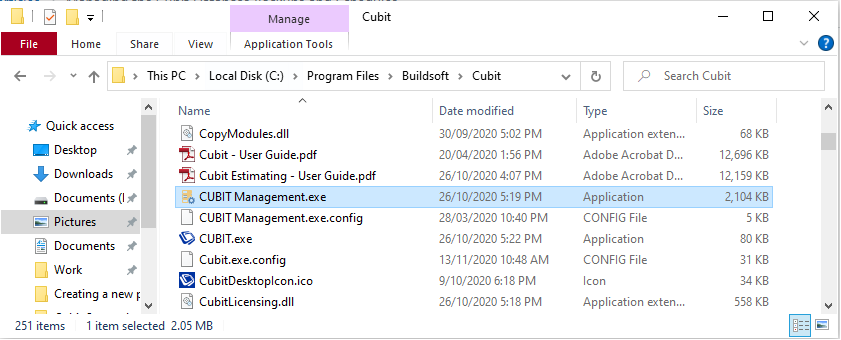

Fig 1. File Location

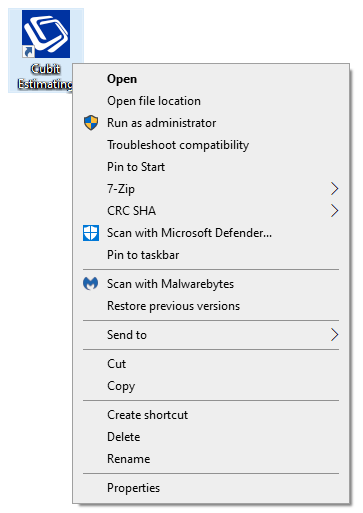

Fig 2. Cubit Estimating Management Shortcut

Configure and Schedule

To configure a database backup you will need to start Cubit Estimating Management Console as an Administrator.

1. Right click on the icon and then select Run as Administrator

2. Click on the Configure button to set up.

This opens a Backup settings window. here you can specify the following options which need to be set up for a backup to be taken correctly.

  • PostgreSQL install directory: You will need to identify what version of Cubit you have installed as this will affect this field.
    If you are using a 64-bit machine you will need to look at folder; C:\Program Files\Postgresql
    If you are using a 32-bit machine you will need to look at folder; C:\Program Files (x86)\Postgresql
    Within the Postgresql folder there will be another folder named either '9.2' or '10'.
    Once you have identified what numbered folder you have you can then set this field to the following based off your configuration;

    64-bit + 10: C:\Program Files\Postgresql\10\bin
    64-bit + 9.2: C:\Program Files\Postgresql\9.2\bin

    32-bit + 10: C:\Program Files (x86)\Postgresql\10\bin

    32-bit + 9.2: C:\Program Files (x86)\Postgresql\9.2\bin

  • Backup directory: The Backup directory can be set any desired accessible location.

  • Number of Backups: This number specifies the No of Old Backups to be kept in the backup location. In the below example, the older backups are removed to ensure that there is always only 6 Backup files saved.

  • Schedule Backups: Set Frequency and date time for the backup to run automatically. It is important to make sure the database is available for the Backups to run at that specified time.

Fig 3. Backup Settings

Manual Backup

A forced database backup can be run any time by clicking the Backup button on the main screen. The Restore button will restore the Backed up Database.

NOTE: Restored database will overwrite the existing data. It is very important to make sure that you are restoring from a valid backup as this action cannot be undone.

It’s also important to ensure that you are restoring a database that is the same version of your program to ensure complete compatibility.

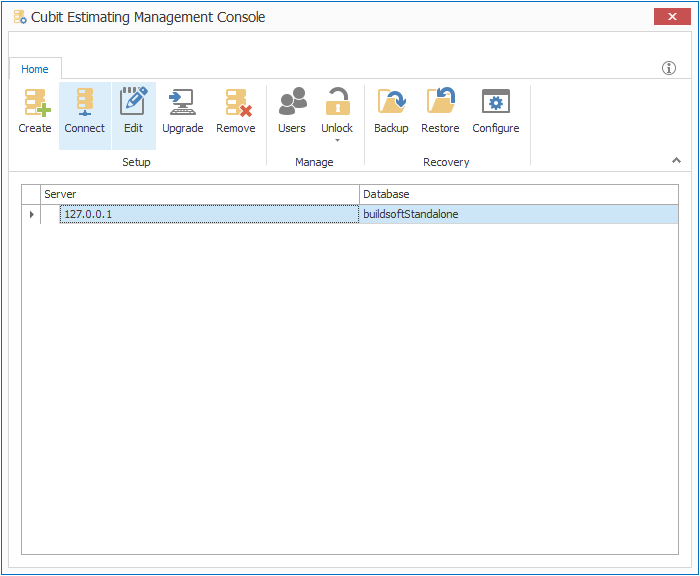

Fig 4. Cubit Management Console
