Sorting a Cubit Estimating Job - Grouped View

Feature Availability: Versions 2022 (11.0.6) and above. For older versions, please visit:

Sorting a Cubit Estimating Job - Grouped View | for Cubit Versions 8 to 10


In earlier versions of Cubit Estimating, sorting and analysing estimates had to be done outside of the job using the Job Manager screen. The introduction of the Grouped View feature allows for sorting and analysis to be done directly within the job, but only for R-coded jobs. With this feature, any changes made to the estimate are automatically reflected in the Grouped View, eliminating the need to manually re-analyse the job. Additionally, sorting is more flexible, allowing you to choose the specific Description by which to analyse your data.

For Q-coded jobs, this functionality remains unchanged and must still be managed via the Job Manager screen.

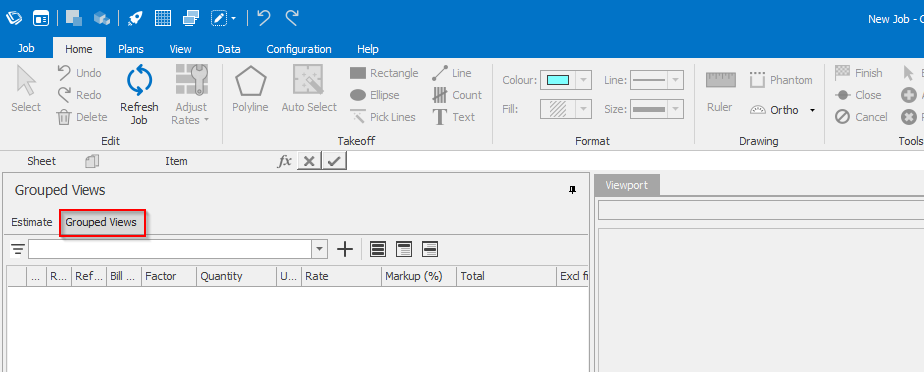

Fig1. Grouped Views

Assigning Group Code to the Job:

1. From the Configuration tab, click on Manage Codes.

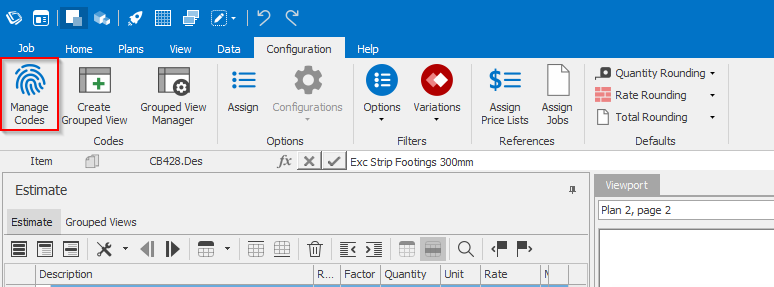

Fig 2. Manage Codes

2. In the following Grouping Codes window, tick the Rate Code group which needs to be mapped and then press Ok.

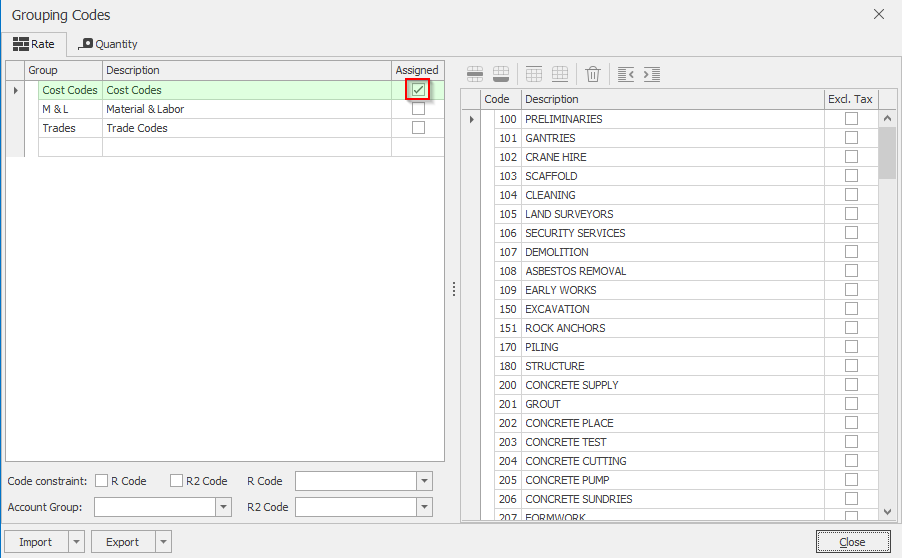

Fig 3. Group mapping

3. Double click on the codes column to set codes on all the items on the job as needed.

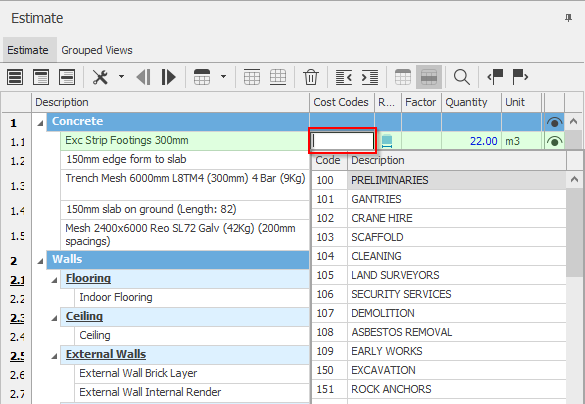

Fig 4. Code the job

Sorting/Analysing Job:

1. When coding is complete run the sorting/analysis by one of the following ways

a. Click on the Create Grouped View button on the Configuration Ribbon

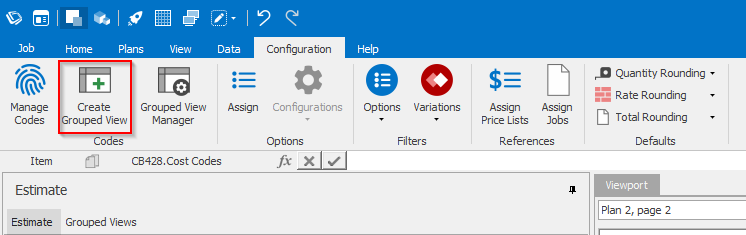

Fig 5. Create Grouped View 1

b. Click the + symbol on the Grouped Views Window.

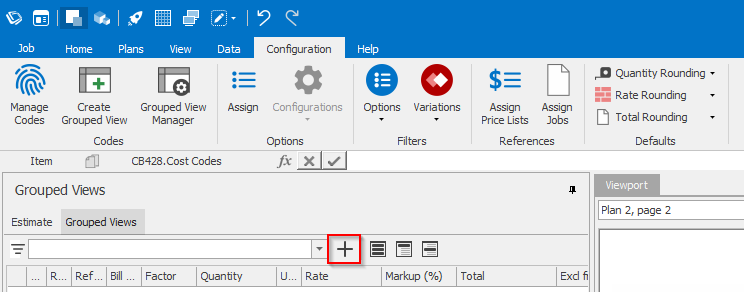

Fig 6. Create Grouped View 2

2. Group By field will be auto-selected. Change a Group Name for this view if needed and select all other options appropriately. Click on Group button to start the analysis.

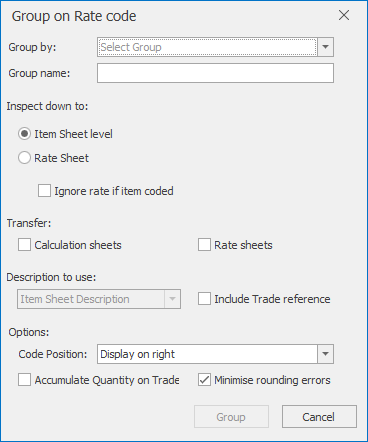

Fig 7. Rate analysis

3. Switch to the Grouped View tab to view the analysed data.

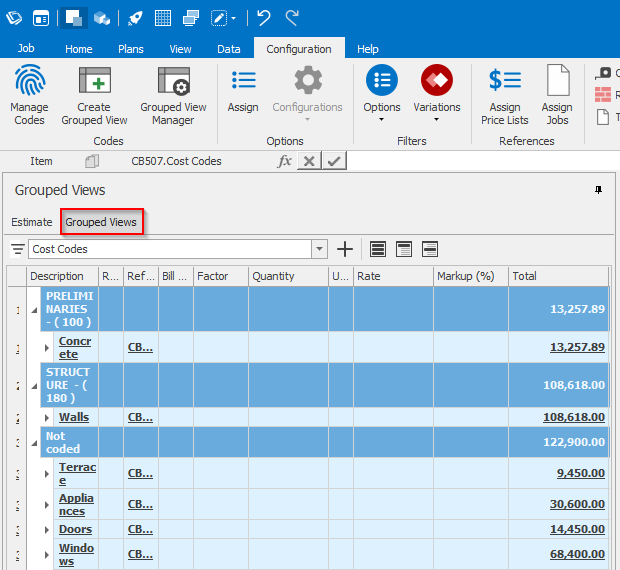

Fig 8. Grouped View result

Multiple Grouped views:

Multiple grouped views can be generated for the same job with the same or a different group codes

1. To navigate between the Grouped Views, click on the drop-down button like below

Fig 9. Multiple grouped view for the same job
